Cables
These extension cables are used to connect a 24 V input LED light unit with an SM connector and a 24 V output control unit.
FCB Series
Straight
FCB-X
Connect an LED light to a control unit.
FCB-X
X = 1, 2, 3, or 5m

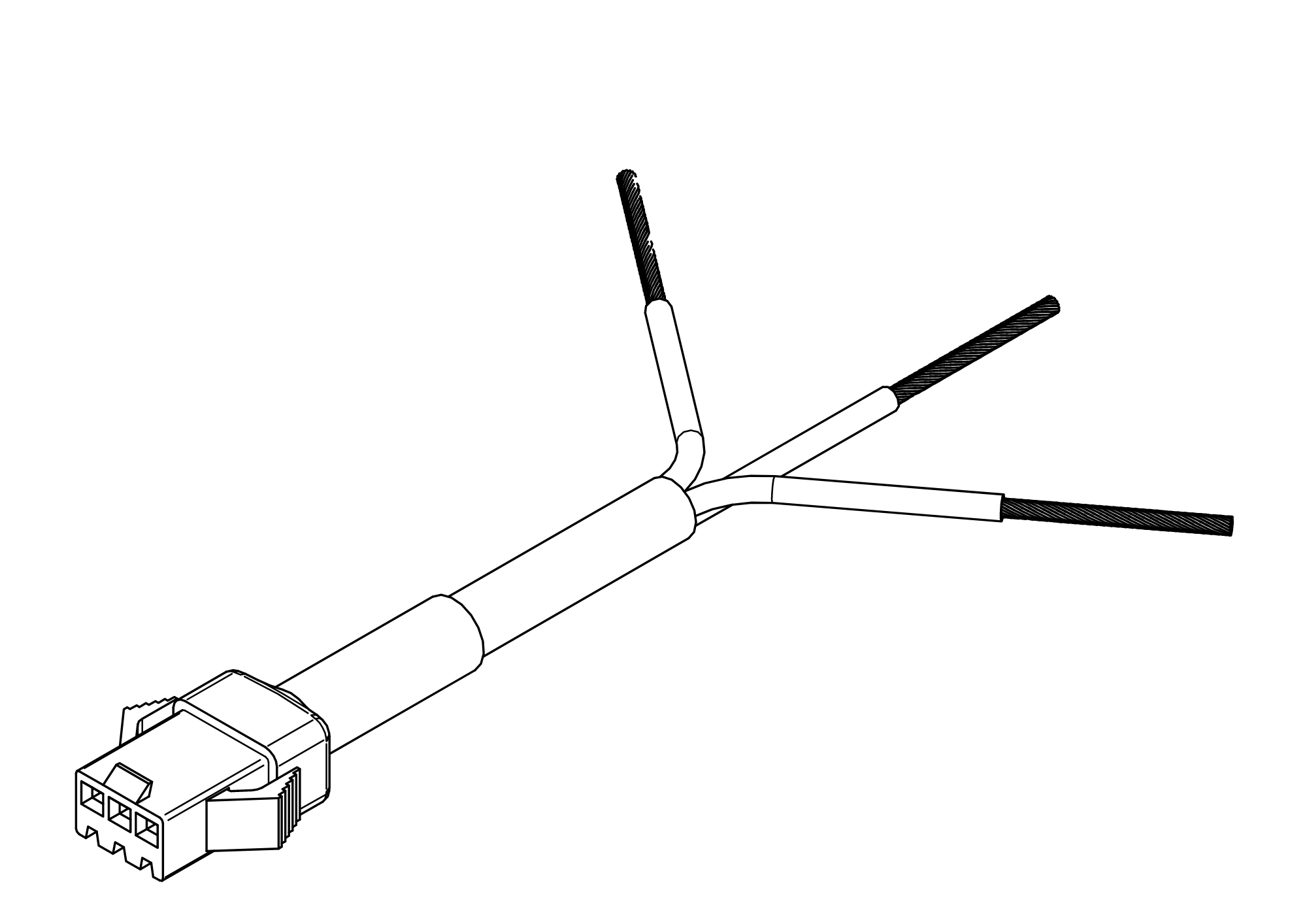

Flying Lead
FCB-X-FL-OC
Connect an LED light to a screw terminal PSU such as Gardasoft or 24VDC.
FCB-X-FL-OC
X = 1, 2, 3, 5, or 10m
2 Branch
FCB-W-X
Connect two LED lights and a control unit.
FCB-W-X
X = 1, 2, 3, or 5m
4 Branch
FCB-F-X
Connect four LED lights and a control unit.
FCB-F-X
X = 1, 2, 3, or 5m
This extension cable is used to connect a 24 V input LED light unit with a 2-pin EL connector and a 24 V output control unit.
FCB-EL2 Series
Straight
FCB-X-EL2
Connect an LED light to a control unit with 2-pin EL connectors.
FCB-X-EL2
X = 1, 2, 3, 5, 10, or 15m
Flying Lead
FCB-X-EL2-FL
Connect an LED light with a 2-pin EL connector to a screw terminal PSU such as Gardasoft or 24VDC.
FCB-X-EL2-FL
X = 1, 2, 3, 5, 10, or 15m
2 Branch
FCB-W-X-EL2
Connect two LED lights and a control unit with 2-pin EL connectors.
FCB-W-X-EL2
X = 1, 2, 3, 5, 10, or 15m
This extension cable is used to connect a 24 V input LED light unit with an M12 connector and a 24 V output control unit. For more M12 cable options refer to Effilux’s cable options.
M12 Series
Straight
EFFC-CAB-M12-FM-5-DD-LX
Connect an LED light to a control unit or smart camera with an M12 connector.
EFFC-CAB-M12-FM-5-DD-LX
X = 2, 5, or 10m
Flying Lead
EFFC-CAB-M12-F-5-D-LX
Connect an LED light with an M12 connector to a screw terminal PSU 24VDC.
EFFC-CAB-M12-F-5-D-LX
X = 2, 5, or 10m
Power/Flying Lead
EFFC-CAB-M12P-F-4-D-LX
The T-coded power cable is for high-power lights. Check the data sheet of your light to determine if a power cable is needed.
EFFC-CAB-M12P-F-4-D-LX
X = 2, 5, or 10m
Other Cables
M12 to SM Converter
QADC-01
Convert an M12 4-pin male connector to an SM24 male connector. Ideal for connecting LED lights with M12 connectors to CCS controllers.
SM to M12 Converter
QRADC-01
Convert an SM24 male connector to an M12 4-pin male connector. Ideal for connecting CCS standard lights to smart cameras.
