Controllers

Controller Series Decision Map

Follow the flow chart to determine your controller series.

Choose a Controller Series

Controller Selection Guide

What you need to know to choose the right controller and how to look up the right model.

Read the guide

PD4 Series

The PD4 is ideal for almost all applications that require one or all of: multiple lights, external control, strobe, ON/OFF or continuous illumination method, intensity control, easy PLC communication (PLCCOM), and/or sequencing/recipes.

    • Continuous, ON/OFF, or strobe lighting

    • Lighting output of 60W or 120W

    • 2 or 4 channel options

    • For lights that have an SM or EL connector

    • Ethernet or parallel external control

    • Parallel type supports NPN and PNP connections

    • 1,024 steps of precise intensity settings

    • Turn lights on in desired pattern with sequence control function

    • Supports PLC link function for easy integration with PLC

    • Trigger output function simplifies the synchronization of camera and lighting

    • Save up to 8 lighting settings with Recipes

    • Real-time information monitoring from applications, such as operating status and operation logs

  • Parallel communication cable: EXCB2-FX40-3

    AC Power cable: ACC-JIS-125-7-M4-2

PD3 Series

The PD3 controller is for applications that require one or all of: multiple lights, external control, strobe, ON/OFF or continuous illumination method, and/or intensity control.

    • Continuous, ON/OFF, and strobe lighting

      • HLV series cannot emit strobe

    • Digital display to easily check set values

    • 256 stage dimmer settings

    • Ethernet, Parallel, or EIA-485 external control

    • AC input types and DC input types available

    • PNP or NPN option available

    • For lights that have an SM or EL connector

    • Capacity & Channels

      • PD3-3024-3: 3 channel/28W

      • PD3-5024-3: 3 channel/48W

      • PD3-5024-4: 4 channel/46W

        • 24V & HLV series spot light

      • PD3-10024-8: 8 channel/95W

        • 24V & HLV series spot light

    • Parallel type has fastest switching for settings

    • Ethernet types support standard TCP/IP and UPD/IP protocols

    • EIA-485 type can individually manage up to 4 units using multi-drop wiring

    • PWM frequency is available in 125kHz (standard) and 500kHz (custom)

  • External Control Cables

    • Parallel Communication cable: EXCB2-M20-3

    • Trigger Input cable: EXCB2-M10-3

    • EIA-485 Communication cable: EXCB2-E3-3

    • EIA-485 Communication relay cable: EXCB2-E3-E3-0.2

    • Parallel Communication/Trigger Input Branch cable: EXCB2-M12M20-3

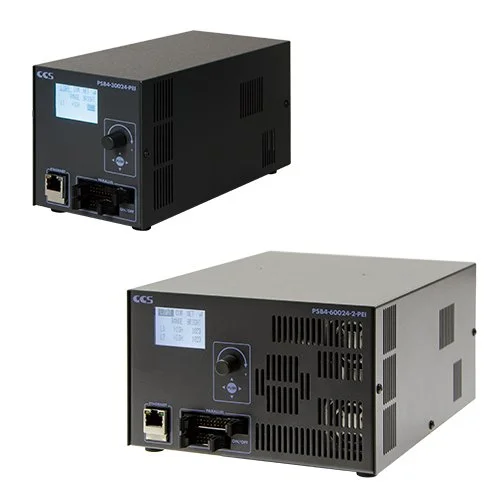

PSB4 Series

The PSB4 is a high-power controller that is ideal for large lights over 100W and line scan applications.

    • Lighting output of 300W

    • 1 or 2 channel options

    • Operating knob and LCD display

    • Dimmer value set to 256 or 1,024 levels

    • Dimmer range can be switched between 3 levels

    • External control via Ethernet and parallel communication

    • For lights with a metal or EL connector

    • Parallel communication cable: EXCB2-M20-3

    • ON/OFF input cable: EXCB2-M10-3

    • Combined parallel communication cable / ON/OFF input cable: EXCB2-M10M20-3

CC-ST Series

The CC-ST controller is made for applications with small lights that require continuous, strobe, or ON/OFF illumination method and intensity control.

    • Continuous, ON/OFF, or strobe lighting

    • Lighting output of 10W

    • 1 channel

    • For lights that have an SM connector

    • No external control

  • External signal cable: NFCB2-CC-3

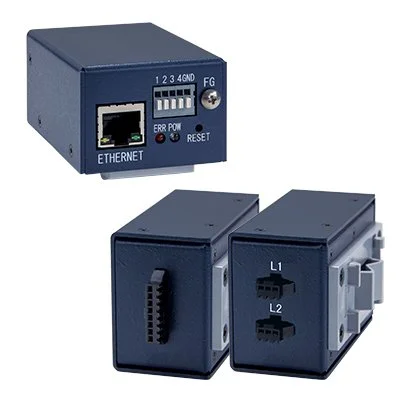

CN-PoE Series

The CN-EPOE controller is for systems that would benefit from one LAN cable for power and Ethernet communication.

    • Continuous or strobe lighting

    • Lighting output of 10W

    • 2 or 4 channel options

    • For lights that have an SM connector

    • Reduce the number of cables in your system by using a single LAN cable for power receiving and communication

    • Trigger sequencing mode enables all channels to be simultaneously controlled with 1 trigger

    • Trigger circulation mode enables channels to be turned on in sequence with each trigger input

    • Provides accumulated values of controller power ON duration, total light ON time, and other operation data

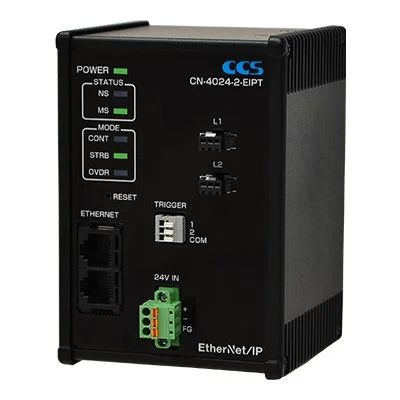

CN-EIPT Series

The CN-EIPT series is ideal for applications that require EtherNet/IP communication.

    • Continuous, strobe, or overdrive lighting

    • Lighting output of 40W for continuous and strobe

    • Light output of 5A max/connector or total for 2 channels, 7A max

    • 2 channels

    • For lights that have an SM connector

    • EtherNet/IP, TCP/IP communication only (no manual control)

    • Through the EtherNet/IP network, the following values are available: accumulated trigger count, accumulated lighting duration, and error status

    • You can set and check the lighting mode, trigger logic, ON/OFF settings, light intensity, strobe time, and lighting delay

PJ2 Series

The PJ2 is a controller series dedicated to the HLV3/HLV2 series spot lights.

    • Continuous lighting

    • Lighting output 38VA or 68VA

    • 2 or 4 channel options

    • For lights that have an SM connector

    • Ethernet or parallel external control

    • Parallel communication cable: EXCB2-M20-3

    • Base brackets: BK-PD3

CC-PJ Series

The CC-PJ controller is a simple dedicated control unit for the HLV3/HLV2 series spot lights.

    • Continuous, ON/OFF, or strobe lighting

    • Output current 700mA

    • 1 channel

    • For HLV lights that have an SM connector

    • No external control

  • External signal cable: NFCB2-CC-3
